Examples for Special Face Geometry by Mesh Refinement

(Using the Chemnitz Parallel FEM Package SPC-PM Po 3D)

(1) - 2 - 3 - 4 - 5 - 6 - 7

(all examples are available as gzip'ed PS file [])

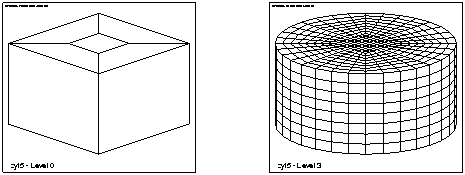

  1. Example "zyl5" , a cylinder, starting with 5 hexahedral elements:

    zyl5
  2. Example "zyl8-e3n", cylinder with different cutting planes, starting with 8 hexahedral elements:

    zyl8-e3n


<==there is a table of currently implemented face types
