Examples for Special Face Geometry by Mesh Refinement
(Using the Chemnitz Parallel FEM Package SPC-PM
Po 3D)
1 - (2)
- 3 - 4 - 5
- 6 - 7
(all examples are available as gzip'ed PS
file [])

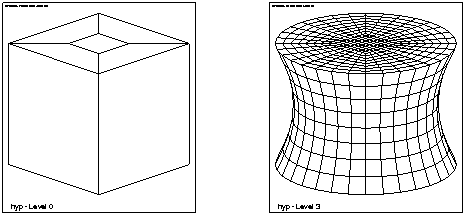

- Example "hyp", a hyperboloid, starting with 5 hexahedral
elements:
![hyperboloid](GIF/fgeo-03.gif)

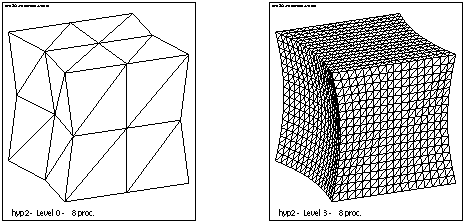

- Example "hyp2", cube with 2 hyperbolic faces, starting
with 48 tetrahedral elements:
![hyper-2](GIF/fgeo-04.gif)
![](http://www.tu-chemnitz.de/Images/Buttons/page.gif)
there
is a table of currently implemented face types
